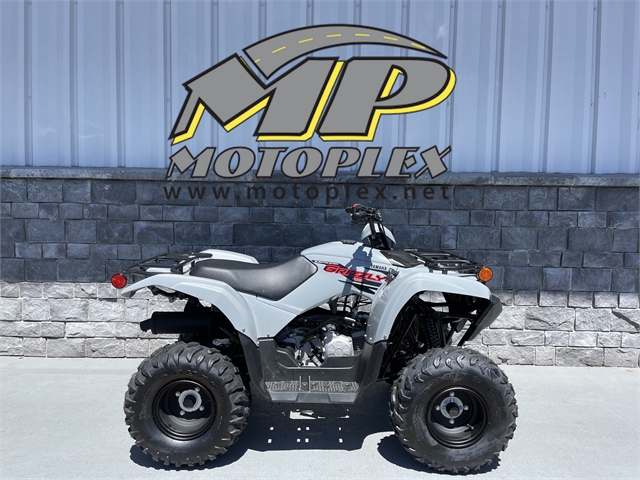

2022 Yamaha Grizzly 90

IN STOCK!

Stock #QYA2255
MSRP: $3,299 USD
Discount: $300
Your Price: $2,999 USD

423 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2022 Yamaha Grizzly . I'm in the area and you can reach me at or by phone at .



TOP FEATURES

  • Confidence-Inspiring 90cc Engine
    The Grizzly 90 is built to bring maximum fun for young ATV riders ages 10 and up. The low-maintenance 90cc engine is tuned to deliver excellent low- to mid-range performance, while the fully automatic CVT transmission with reverse, gated shifter and electric start with back-up kickstart all come standard.
  • Reduced Maintenance Design
    Durable, proven components keep servicing simple and affordable thanks to features like the tool-less quick-access air filter element.
  • Scaled Down, Not Scaled Back
    The Grizzly 90 takes cues from its top-performing full-size Grizzly siblings, but is designed specifically for younger riders just getting into the sport. The result is accessible, confidence-inspiring performance with Grizzly family style.
  • Comfortable Chassis
    The ergonomics are designed to fit a wide range of riders 10 and up, while the Grizzly 90's tire and suspension package provide sure-footed traction and a comfortable ride in a wide variety of terrain.

CAPABILITY

  • Robust 90cc Engine
    The Grizzly 90's four-stroke SOHC 90cc engine is tuned to develop excellent low- to mid-range performance. The engine utilizes proven wet-sump lubrication and is air-cooled for simplicity, performance and long service life.
  • Adventure-Ready Chassis
    Compact A-arm front suspension is tuned for light steering and comfortable ride quality, offering 5 inches of travel. A swingarm set-up in the rear provides 5.7 inches of wheel travel, adding to the Grizzly 90's full-size look and feel.
  • Secure Stopping Power
    For reliable stopping power, three sealed drum brakes bring the Grizzly 90 to a quick halt. There's a handlebar-mounted parking brake too.
  • Integrated Cargo Racks
    Robust steal cargo racks front and rear give younger riders the ability to pack their own gear as they join the family on their next adventure.
  • Renowned Grizzly Traction
    Just like its off-road-proven big brothers, the Grizzly 90 features aggressive tires to maximize traction on any trail. The oversized 19-inch front tires and complementing 18-inch rear tires lend the compact machine an purposeful stance.

COMFORT

  • Comfortable Accommodations
    The Grizzly 90 is designed to be comfortable for a wide variety of riders 10 and up. With its large, plush seat and wide floorboards, riders won't outgrow the machine as they build their off-road riding skills.
  • Big Mud-Deflecting Fenders
    The Grizzly 90 boasts full-coverage fenders just like its Grizzly siblings, enhancing style and protecting the rider from mud and trail debris.

CONFIDENCE

  • Automatic Transmission
    Fully automatic, continuously variable transmission (CVT) means no shifting. Handy for all riders, it's a feature entry-level riders particularly appreciate. Standard reverse simplifies maneuvering the Grizzly 90 in tight spots.
  • Engine Limiter
    To help young beginners grow into accomplished ATV riders, the Grizzly 90 includes both an electronic limiter and throttle limiter to tailor the engine's performance to the rider's advancing skill level.
  • Electric Starter
    Push-button electric starting comes standard. For additional peace of mind, an emergency kick starter is also provided in a storage spot under the seat.
  • Compact and Durable Drivetrain
    Engine power is transferred to the rear wheels via a tried-and-true O-ring chain drive, running along a swingarm that's set at an optimized angle for superior rear shock performance.
  • Modern, Reliable Electronics
    The CDI system means reliable ignition performance, and a sealed maintenance free battery provides worry-free operation. Handlebar-mounted reserve and neutral indicators keep the rider informed in all situations.
  • Low Maintenance Design
    Servicing is easy thanks to features like the tool-less quick-access air filter element.



*Price plus dest, tax, lic, dlr*

  • Status:
    New
  • Vehicle:
    2022 Yamaha Grizzly 90
  • VIN:
    RF3AB13E8NT002255
  • Stock Number:
    QYA2255
  • Title:
    Clear
  • Location:
    Lynnwood Motoplex, Lynnwood, WA 98037
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Dual Sealed Drum
  • Rear Brake Type:
    Sealed Drum

DRIVE LINE

  • Driveline Type:
    4X2
  • Number Of Driveline Modes:
    1
  • Rear Solid Axle:
    Yes

ENGINE

  • Bore (in):
    1.85
  • Bore (mm):
    47
  • Carburetion Type:
    Carburetor
  • Carburetor Size (mm):
    13
  • Carburetor:
    Yes
  • Compression Ratio:
    9.2
  • Cooling:
    Air
  • Cylinders:
    1
  • Displacement (cc):
    90
  • Displacement (ci):
    5.5
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Number Of Carburetors:
    1
  • Speed Governor:
    Yes
  • Starter:
    Electric / Kick
  • Stroke (in):
    2.04
  • Stroke (mm):
    51.8
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    2
  • Valves:
    2

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Floor Board Location:
    Driver
  • Frame:
    Steel

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    28.7
  • Seat Height (mm):
    729
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Manual

SUSPENSION

  • Front Suspension Type:
    A-Arm
  • Front Travel (in):
    5
  • Front Travel (mm):
    127
  • Number Rear Shock Absorbers:
    1
  • Rear Suspension Type:
    Swing Arm
  • Rear Travel (in):
    5.7
  • Rear Travel (mm):
    144.8

TECHNICAL SPECIFICATIONS

  • Engine Displacement to Weight (cc):
    0.29
  • Fuel Capacity (gal):
    1.7
  • Fuel Capacity (l):
    6.4
  • Ground Clearance (in):
    4.1
  • Ground Clearance (mm):
    104.1
  • Height (in):
    39.6
  • Height (mm):
    1005.8
  • Length (ft):
    5.12
  • Length (ft/ft):
    5
  • Length (ft/in):
    1.5
  • Length (in):
    61.5
  • Length (mm):
    1562.1
  • Wet Weight (kg):
    139.6
  • Wet Weight (lbs):
    307.8
  • Wheelbase (in):
    40.6
  • Wheelbase (mm):
    1031.2
  • Width (in):
    40.6
  • Width (mm):
    1031.2

TRANSMISSION

  • Primary Drive (Rear Wheel):
    Chain
  • Reverse:
    Yes
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    AT 19 X 7-8
  • Front Tire Diameter (in):
    19
  • Front Tire Width:
    7
  • Front Wheel Diameter:
    8
  • Rear Tire (Full Spec):
    AT 18 X 9-8
  • Rear Tire Diameter (in):
    18
  • Rear Tire Width:
    9
  • Rear Wheel Diameter:
    8
  • Tube / Tubeless:
    Tubeless
  • Wheels Composition:
    Steel
