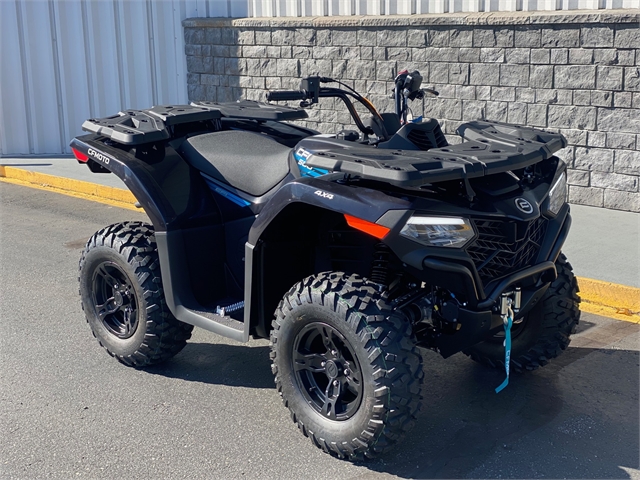

2023 CFMOTO CFORCE 500

IN STOCK

Stock #QFA1159
MSRP: $6,199 USD

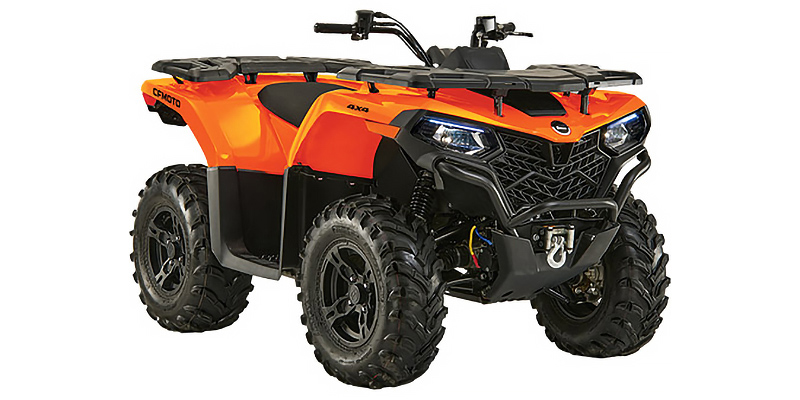

Stock Photos - Actual Images Coming Soon
Check Availability Hi, my name is and I'm interested in this 2023 CFMOTO CFORCE . I'm in the area and you can reach me at or by phone at .



2023 CFMoto CForce 500

RIDE WITHOUT COMPROMISE

Push the limits with a CFMOTO ATV. Each model in CFMOTO’s full line of all terrain vehicles is engineered to give you the smoothest, hardest working ride. With a comfortable and ergonomic riding position, you will always have a commanding view of the terrain in front of you. Whether for sport or utility, each machine in our ATV lineup will handle the biggest jobs and get you through the toughest terrain.



5-year limited warranty

A new platform for the 495cc model, the CFORCE 500 is stronger, sturdier and more ergonomic than the previous model. Equipped with aluminum rims, Electric Power Steering (EPS) and hand guards.

Features may include:

  • Electric Power Steering
  • Lateral Mirrors
  • 12V Plug
  • CVTech Clutch System
  • Fuel injected engine
  • 5-year warranty
  • Fuel injected 495 cc engine
  • Electric power steering (EPS)
  • Digital display dashboard with full instrumentation
  • 12V and dual USB outlet
  • Mirrors and handguards
  • Aluminum wheels
  • LED headlight with integrated turn signals



  • Status:
    New
  • Vehicle:
    2023 CFMOTO CFORCE 500
  • VIN:
    LCEFDTZ13P6001159
  • Color:
    Jet Black
  • Stock Number:
    QFA1159
  • Title:
    Clear
  • Location:
    Lynnwood Motoplex, Lynnwood, WA 98037
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Front
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes:
    2

ENGINE

  • Bore (in):
    3.58
  • Bore (mm):
    91
  • Carburetion Brand:
    Bosch
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10.3
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    495
  • Displacement (ci):
    30.2
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Horsepower (bhp):
    38
  • Horsepower (kW):
    28.4
  • Horsepower RPM:
    6800
  • Starter:
    Electric
  • Stroke (in):
    3
  • Stroke (mm):
    76.2
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    4
  • Valves:
    4

EXTERIOR

  • A-Arm Skid Plate (Front):
    Yes
  • A-Arm Skid Plate (Rear):
    Yes
  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Floor Board Location:
    Driver
  • Frame:
    Steel
  • Radiator Guard:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    LED

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    35.4
  • Seat Height (mm):
    899.2
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Power

STORAGE

  • Capacity (kgs):
    34
  • Capacity (kgs):
    45.4
  • Capacity (lbs):
    100
  • Capacity (lbs):
    75

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Suspension Type:
    Independent Double A-Arm
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Type:
    Independent Double A-Arm

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    355.2
  • Dry Weight (lbs):
    783
  • Engine Displacement to Weight (cc):
    0.63
  • Fuel Capacity (gal):
    4.4
  • Fuel Capacity (l):
    16.7
  • Ground Clearance (in):
    10.3
  • Ground Clearance (mm):
    261.6
  • Height (in):
    45.3
  • Height (mm):
    1150.6
  • Length (ft):
    6.72
  • Length (ft/ft):
    6
  • Length (ft/in):
    8.6
  • Length (in):
    80.6
  • Length (mm):
    2047.2
  • Towing Capacity (kgs):
    396
  • Towing Capacity (lbs):
    873
  • Wheelbase (in):
    50
  • Wheelbase (mm):
    1270
  • Width (in):
    44.3
  • Width (mm):
    1125.2

TOWING & HAULING

  • Rear Hitch Type:
    Receiver
  • Size (cm):
    5.1
  • Size (in):
    2
  • Weight (kgs):
    1134
  • Weight (lbs):
    2500

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Brand:
    CVTech
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    25 x 8 R12
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    25 x 10 R12
  • Rear Wheel Diameter:
    12
  • Tube / Tubeless:
    Tubeless
  • Wheels Composition:
    Aluminum
