RELEASE THE RUCKUS
For decades, the 250 cc 2-stroke class has been at the forefront of pure unadulterated performance. It is epitomized by sweet-smelling 2-stroke smoke, top-end powerbands and 'Braaaap!'. The 2023 KTM 250 SX takes that to an all-new, gnarlier level. Thanks to a swathe of cutting-edge advancements across the board, this 2-stoke legend has stepped up, and even further out of reach of the competition.
BEFORE THE GATE
- EASY SUSPENSION ADJUSTMENT: Get dialed in! The 2023 KTM SX range boasts totally tool-free suspension setup at both ends. Thanks to an all-new shock absorber design featuring hand-adjustable dual compression control, it allows riders to adjust high- and low-speed settings in a matter of seconds. On the front end, the forks are also easily adjusted thanks to a single air pressure preload valve, as well as through easy access click adjusters for compression and rebound. We'll even throw the air pump in as standard.
- ELECTRONIC FUEL INJECTION: Pre-mix gets a remix across the 2-stroke KTM SX range, with Electronic Fuel Injection setting the standard. Now there's no more jetting setup pre-race. And thanks to the all-new Keihin EFI and reed valve case design, you can be guaranteed of laying down optimal power at any altitude, all of the time.
- ELECTRIC START: Picture this; You're 7 laps into an absolute ripper of a race. You miss your line and end up stalling in a deep rut. But you don't sweat it. All you do is press the starter button and you blast off again to take the final flag. This is the reality on the 2023 KTM 250 SX. Thanks to a 12.8V 2 Ah lithium ion battery placed under the rider’s seat, a new high-quality stator and pickup and super robust design, the days of kick-starting are over.
CALM UNDER FIRE
- ABSOLUTE CONTROL: No matter how gnarly the track is, you'll stay in complete control thanks to an all-new frame design that has not only been engineered for longitudinal rigidity but also repositions rotating mass closer to the center of gravity. A new shock mounting also provides improved anti-squat behavior to better traction out of corners, while the footpeg mounting position has moved inwards for less risk of hooking up in deep ruts or when scrubbing jumps.
- ERGONOMICS: The 2023 KTM SX and SX-F range feature an entirely new and improved rider triangle, providing improved knee contact - especially when standing on the pegs - with improved gripping surfaces all around. New plastics work to expel mud buildup in wet, muddy conditions, with a new, flatter seat profile and high grip seat cover providing exceptional rider movement and control. The polyamide reinforced aluminum subframe further enhances rider feel and feedback.
- MASS CENTRALIZATION: With a major emphasis placed on mass centralization, the 2023 KTM 250 SX engine is designed to centralize rotating mass for optimal operation with the chassis. This results in a lighter, more agile handling feel that simply runs rings around the competition.
HIT THE BIG STUFF
- TRACTION: Ready to rip your arms out of the sockets? Together with the benefits of mass centralization and an overall lighter feel, the anti-squat behavior of the chassis is significantly improved by changing the backbone of the steel frame concept. In layman's terms, the 2023 KTM 250 SX gets its power down perfectly when tearing out of corners.
- WP XACT FORK: 48 mm air type WP XACT front fork with a split damping function provides all the confidence you need to attack the track. New hydrostops in the fork legs improve bottoming-out resistance and account for less rebound when attacking big jumps, bumps, and thumps. Redesigned fork protection rings also increase protection against dirt, making them as reliable as they are awesome.
- STABILITY: The 2023 KTM 250 SX is rock-solid at any speed thanks to a repositioned and forged steering head connection and CNC milled triple clamps. Made from high-grade aluminum, these feature optimally tuned steering stem stiffness, perfect alignment of the fork tubes, and precise geometry of the fork clamps to ensure highly responsive and smooth fork action - not to mention unwavering stability when charging across ruts and onto the podium.
- ENERGY ABSORPTION: Besides the expertly crafted, hydro-formed, laser-cut, and robot-welded frame being engineered to provide exceptional rider feedback and straight-line stability, it consists of specifically calculated parameters of longitudinal and torsional flex. This means the frame acts as a "shock absorber" of sorts, making for a less harsh ride, resulting in less rider fatigue over many hard laps.
- GROUND CLEARANCE: The all-new frame and shock absorber geometry on the 2023 KTM 250 SX improve ground clearance of the linkage, with all-new topology optimized die-cast footpegs that are less susceptible to hooking on deep ruts, and take-offs when scrubbing.
- CONSISTENCY: A new WP XACT shock absorber provides unmatched consistency lap after lap, thanks to low-friction SKF linkage seals and advanced damping characteristics for unsurpassed traction and energy absorption.
- EFI + POWER VALVE: With EFI comes great rideability. Along with the electronic fuel injection, a new Power Valve has also been fitted to the KTM 250 SX, allowing for more usable power throughout the rev range. Smoother power means better traction. Better traction means holeshot heaven!
- PERFORMANCE: The KTM 250 SX has always represented the very best of unsurpassed power and lightweight construction. The simplicity and low maintenance cost of the 2-stroke motor have made it a favorite amongst motocross riders for generations. For 2023, The KTM 250 SX enters the pits with enhanced performance and an overall engine weight of only 52.6 lb, setting the 250 SX engine sets the benchmark in the highly competitive 250 cc class.
- SELECTABLE MAPS: The 2023 KTM 250 SX features a map select switch allowing the racer to switch between 2 engine maps. Map 1 provides a linear, predictable power delivery, while Map 2 gives it the full beans with crisp, explosive power output.
*Price plus dest, tax, lic, dlr*

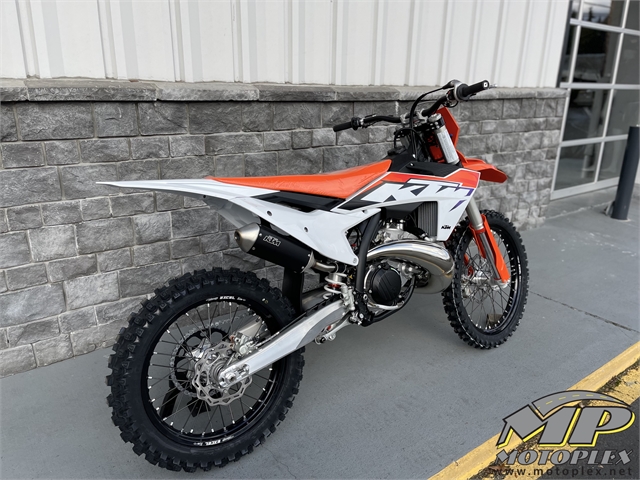

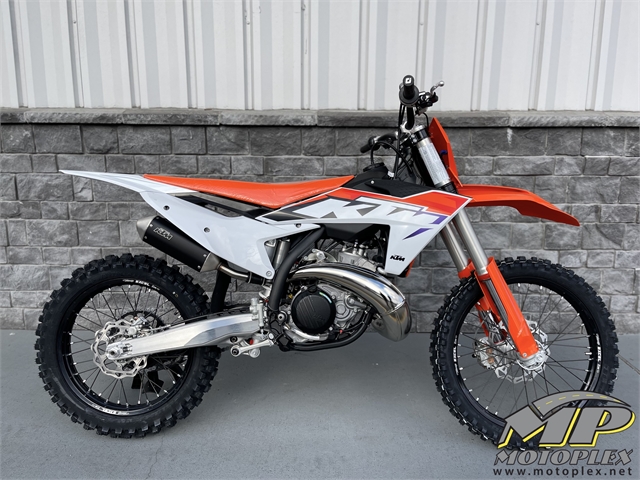

Vehicle:2023 KTM 250 SX
Color:Orange / White
Location:Lynnwood Motoplex, Lynnwood, WA 98037
Warranty:Manufacturer's w/ Extended Available
Brake Brand Name: Brembo®
Front Brake Diameter (in): 10.2
Front Brake Diameter (mm): 260
Front Brake Type: Hydraulic Disc
Rear Brake Diameter (in): 8.7
Rear Brake Diameter (mm): 220
Rear Brake Type: Hydraulic Disc
Bore (in): 2.61
Bore (mm): 66.4
Carburetion Brand: Keihin
Carburetion Type: Fuel Injected
Displacement (cc): 249
Displacement (ci): 15.2
Engine Stroke: 2-Stroke
Engine Type: Single-Cylinder
Fuel Injector: Yes
Fuel Requirements: Premium
Fuel Type: Gas / Oil Premix
Stroke (in): 2.83
Stroke (mm): 72
Valve Configuration: Reed Valve
Body Material: Plastic
Exhaust Guard: Yes
Foot Peg Location: Driver
Fork Guards: Yes
Frame: Chromium Molybdenum
Radiator Cover: Yes
Stand Type: Kick
Top Crown Material: Aluminum
Number Of Seats: 1
Seat Height (in): 37.7
Seat Height (mm): 958
Seat Location: Driver
Seat Material: Vinyl
Seat Type: One-Piece
Steering Control: Handlebar
Front Adjustable Fork Pre-Load: Yes
Front Adjustable Rebound Damping: Yes
Front Suspension Brand Name: WP XACT
Front Suspension Size (in): 1.9
Front Suspension Size (mm): 48
Front Suspension Type: Inverted Fork
Front Travel (in): 12.2
Front Travel (mm): 310
Number Rear Shock Absorbers: 1
Rear Adjustable Rebound Damping: Yes
Rear Adjustable Shock / Spring Pre-Load: Yes
Rear Suspension Brand Name: WP XACT
Rear Suspension Material: Aluminum
Rear Suspension Type: Twin Sided Swing Arm
Rear Travel (in): 11.8
Rear Travel (mm): 300
WHEELS & TIRES
Front Tire (Full Spec): Dunlop® GEOMAX MX3S 80/100 R21 51M
Front Tire Aspect Ratio: 100
Front Tire Speed Rating: M
Front Tire Width: 80
Front Wheel Diameter: 21
Front Wheel Width (in): 1.6
Rear Tire (Full Spec): Dunlop® GEOMAX MX3S 110/90 R19 62M
Rear Tire Aspect Ratio: 90
Rear Tire Speed Rating: M
Rear Tire Width: 110
Rear Wheel Diameter: 19
Rear Wheel Width (in): 2.15
Tire Brand: Dunlop®
Tube / Tubeless: Tubed
Wheels Composition: Aluminum
Price does not include factory freight, assembly, PDI, and any other applicable surcharges
