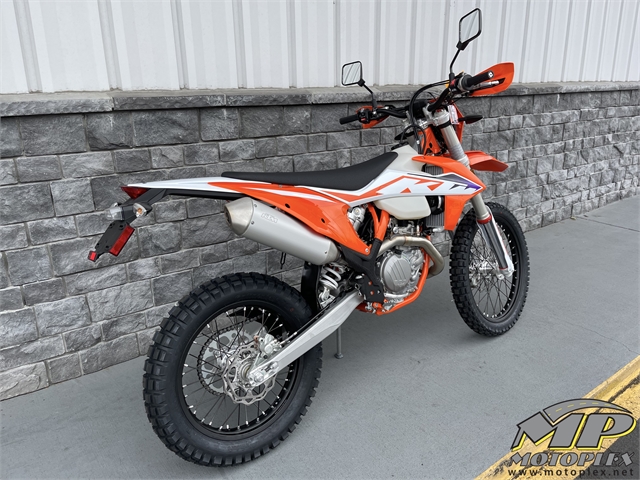

2023 KTM 500 EXC-F

$1,000 KTM PG&A OFFER!

Stock #QKM7518
MSRP: $12,549 USD

133 people have recently viewed it.
Check Availability

Hi, my name is and I'm interested in this 2023 KTM EXC 500 EXC-F . I'm in the area and you can reach me at or by phone at

Think of the 2023 KTM 500 EXC-F as a sledgehammer. Hard-hitting, effective, and utterly devastating. But, thanks to a nimble chassis and its even more compact high-tech engine, this large-displacement power machine is surprisingly light and rideable. As a result, this 510 cc SOHC single-cylinder powerhouse has an incredible power-to-weight ratio and provides nothing less than the most dynamic, and exciting option for weekend outrides, enduro competition, or rally event.



Stand back or hold on tight, this is the most powerful dual-sport motorcycle on the market. The latest generation KTM 500 EXC-F packs a thrilling 4-stroke punch while still delivering outstanding rideability. Thanks to its lightweight chassis and compact, high-tech engine, this awesome 510 cc SOHC single-cylinder bombshell is surprisingly light with excellent agility. As a result, it has an incredible power-to-weight ratio and provides nothing less than the most dynamic riding experience available.



2023 KTM 500 EXC-F Highlights:

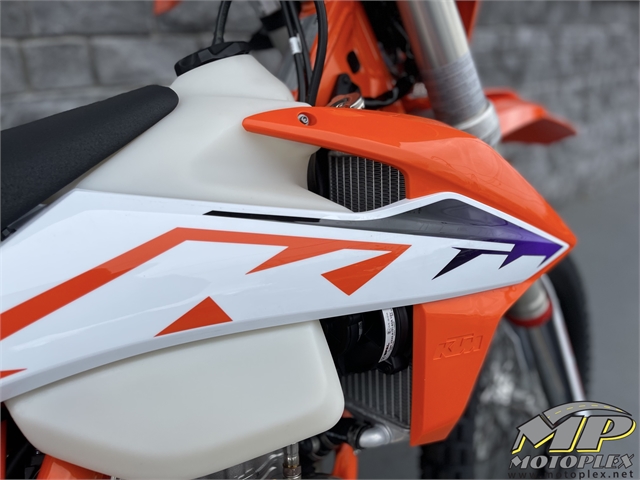

  • NEW graphic design and white, purple and orange color scheme come together to pay homage to the early ‘90s enduro models. An orange frame sets the graphics off and echoes KTM factory machines.
  • WP XPLOR forks provide next-level control and comfort and are fully adjustable for terrain and rider preference.
  • WP XPLOR rear shock with PDS (Progressive Damping System) technology offers lower maintenance with fewer moving parts and provides more ground clearance.
  • High-tech, lightweight chrome-moly steel frame with carefully calculated flex parameters provides a great blend of comfort, stability and precision.
  • Single-piece cast aluminum swingarm is manufactured using a gravity die-cast production process, offering exceptional strength at the lowest possible weight.
  • Light engine cases with a centralized shaft configuration move the crankshaft closer to the bike’s center of gravity for light handling and quick responsiveness.
  • Reinforced clutch cover for improved resistance against impacts in rocky terrain.
  • 6-speed wide ratio transmission is perfectly suited for road and offroad duty.
  • Bodywork features a slim design for excellent comfort and freedom of movement, putting the rider in complete control.
  • Air box and air boot designed to provide maximum protection of the air filter against soiling and better airflow for increased performance. Air filter can be accessed without tools for quick servicing.
  • Hydraulic Brembo clutch system offers highly controllable modulation of the clutch and light operation, minimizing fatigue on demanding rides.
  • High-tech Brembo brakes have always been standard equipment on KTM offroad machines and are combined with lightweight Wave discs to offer incredible braking power and feel.
  • Super lightweight Galfer Wave rotors, CNC machined hubs, high-end Giant rims and Continental TKC 80 tires provide excellent performance while reducing unsprung weight.
  • Offroad specific features such as hand guards, a side stand and oversized tank ensure the KTM EXC-F machines are READY TO RACE.





*Price plus dest, tax, lic, dlr*

  • Status:
    New
  • Vehicle:
    2023 KTM 500 EXC-F
  • VIN:
    VBKEXK402PM447518
  • Model Number:
    F8575W9
  • Mileage:
    3 miles
  • Stock Number:
    QKM7518
  • Title:
    Clear
  • Location:
    Lynnwood Motoplex, Lynnwood, WA 98037
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Brake Brand Name:
    Brembo®
  • Front Brake Diameter (in):
    10.2
  • Front Brake Diameter (mm):
    260
  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    8.7
  • Rear Brake Diameter (mm):
    220
  • Rear Brake Type:
    Hydraulic Disc

ENGINE

  • Bore (in):
    3.74
  • Bore (mm):
    95
  • Carburetion Brand:
    Keihin
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    12.8
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    510.9
  • Displacement (ci):
    31.2
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    42
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    2.83
  • Stroke (mm):
    72
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    4
  • Valves:
    4

EXTERIOR

  • Body Material:
    Plastic
  • Chain Guard:
    Yes
  • Exhaust Guard:
    Yes
  • Foot Peg Location:
    Driver
  • Fork Guards:
    Yes
  • Frame:
    Chromium Molybdenum
  • Hand Guards:
    Yes
  • Radiator Cover:
    Yes
  • Stand Type:
    Kick

GLASS

  • Folding:
    Yes

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    37.8
  • Seat Height (mm):
    960
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Adjustable Rebound Damping:
    Yes
  • Front Suspension Brand Name:
    WP XPLOR
  • Front Suspension Size (in):
    1.9
  • Front Suspension Size (mm):
    48
  • Front Suspension Type:
    Inverted Fork
  • Front Travel (in):
    11.8
  • Front Travel (mm):
    300
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Brand Name:
    WP XPLOR
  • Rear Suspension Material:
    Aluminum
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Rear Travel (in):
    12.2
  • Rear Travel (mm):
    310

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    109
  • Dry Weight (lbs):
    240.3
  • Engine Displacement to Weight (cc):
    2.12
  • Fuel Capacity (gal):
    2.3
  • Fuel Capacity (l):
    8.5
  • Ground Clearance (in):
    14
  • Ground Clearance (mm):
    355
  • Wheelbase (in):
    58.3
  • Wheelbase (mm):
    1482

TRANSMISSION

  • Final Drive Ratio:
    3.57
  • Number Of Speeds:
    6
  • Overdrive:
    Yes
  • Primary Drive (Rear Wheel):
    Chain
  • Transmission Brand:
    Pankl
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Continental TKC 80 90/90 R21 54S
  • Front Tire Aspect Ratio:
    90
  • Front Tire Speed Rating:
    S
  • Front Tire Width:
    90
  • Front Wheel Diameter:
    21
  • Front Wheel Width (in):
    1.6
  • Rear Tire (Full Spec):
    Continental TKC 80 120/90 R18 65R
  • Rear Tire Aspect Ratio:
    90
  • Rear Tire Speed Rating:
    R
  • Rear Tire Width:
    120
  • Rear Wheel Diameter:
    18
  • Rear Wheel Width (in):
    2.15
  • Tire Brand:
    Continental
  • Tube / Tubeless:
    Tubed
  • Wheels Composition:
    Aluminum
