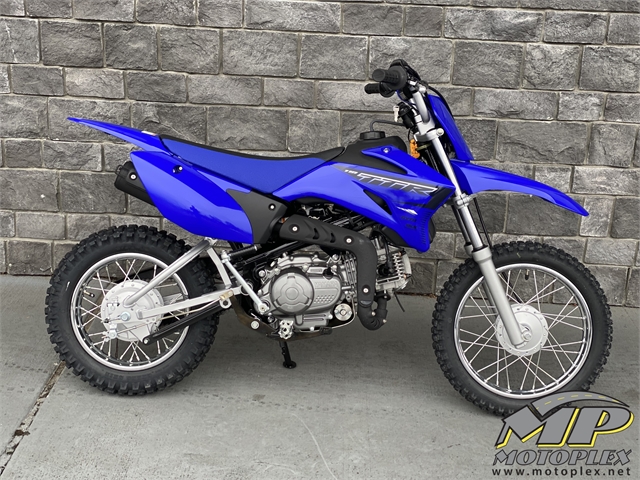

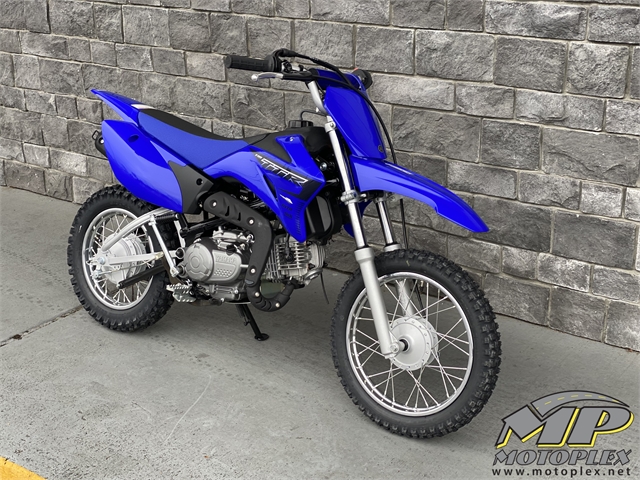

2023 Yamaha TT-R110E

IN STOCK!

Stock #QYD5506
MSRP: $2,299 USD

87 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2023 Yamaha TT-R . I'm in the area and you can reach me at or by phone at .



SMALL PACKAGE. BIG FUN.

The bike that produces big fun for both young and older riders and everyone in between. The versatile TT-R110E is a bike for the whole family.



Chassis / Suspension

  • ROBUST, COMPACT FRAME: Steel backbone frame ties steering head and swingarm pivot together via a straight line, with the engine mounted at three places for optimum strength and high ground clearance.
  • WELL-DAMPED FRONT FORK: The 31mm fork with high-tech internals including a damper valve with oil lock provide excellent damping, great bottoming resistance and 4.5 inches of smooth travel.
  • ADVANCED REAR SUSPENSION: Monocross® rear suspension and gusseted steel swingarm provide excellent rear wheel control through 4.3 inches of travel.
  • STYLISH ALUMINUM TOP CLAMP: Die-cast aluminum top triple clamp provides light, precise handling and looks great too.
  • TRAIL-READY DIMENSIONS: The 26.4-inch seat height and 7.1 inches of ground clearance inspire confident performance on rugged trails.
  • ENCLOSED DRUM BRAKES: Front and rear drum brakes deliver strong, dependable stopping power.
  • NIMBLE WHEELS AND TIRES: The 14-inch front and 12-inch rear wheels inspire great rider confidence by keeping the seat low and the steering light.
  • DURABLE KNOBBY TIRES: Knobby tires offer superb grip and exceptional wear.

Engine

  • TORQUE-RICH ENGINE: Powerful 110cc air-cooled SOHC four-stroke engine is tuned for off-road performance in a wide range of trail conditions.
  • COMPACT CYLINDER DESIGN: Compact hemispherical combustion chamber with 9.3:1 compression produces max torque at 4,000 rpm and max horsepower at 7,500 rpm.
  • AUTO-CLUTCH CONVENIENCE: Four-speed gearbox with automatic clutch has the right gear for wherever you ride.
  • ELECTRIC STARTER: Convenient push-button electric start feature for effortless engine startup with a backup kick starter.
  • DIGITAL IGNITION: CDI ignition system is ultra-reliable and never needs maintenance.
  • LOW MAINTENANCE ENGINE: Automatic cam chain tensioner means minimal maintenance and longer engine life.
  • EASY SERVICEABILITY: Easy-access, tool-free air filter adds extra convenience during maintenance.
  • FOREST-FRIENDLY EXHAUST: Lightweight exhaust system features quiet, USFS-approved spark arrestor.

Other Features

  • LOW SEAT HEIGHT: The long, YZ-style gripper seat is low and comfortable and allows for easy rider movement.
  • RACING STYLE: Team Yamaha-inspired colors and graphics with front and side number plates create competition motocross styling similar to its YZ siblings.
  • GRIPPY FOOT PEGS: Large folding, cleated foot pegs provide excellent footing, even in wet or muddy conditions.
  • STANDARD SECURITY: Key-type ignition switch deters unauthorized riding.

Top Features

  • ACCESSIBLE PERFORMANCE: Big fun for the whole family, the YZ-styled, four-stroke-powered TT-R110E begs to be ridden by everyone.
  • LOW SEAT HEIGHT: A seat height of only 26.4 inches makes the TT-R110E accessible to most riders, but the 7.1 inches of ground clearance and great suspension at both ends means it can go almost anywhere too.
  • ELECTRIC STARTER: Convenient push-button electric start feature for effortless engine startup with a backup kick starter.
  • AUTO-CLUTCH CONVENIENCE: Four-speed auto-clutch transmission has an easily accessible gear for nearly any terrain.





*Price plus dest, tax, lic, dlr*

  • Status:
    New
  • Vehicle:
    2023 Yamaha TT-R110E
  • VIN:
    JYACE25E2PA005506
  • Model Number:
    TTR110EPC
  • Color:
    BLUE/WHT
  • Stock Number:
    QYD5506
  • Title:
    Clear
  • Location:
    Lynnwood Motoplex, Lynnwood, WA 98037
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    3.7
  • Front Brake Diameter (mm):
    95
  • Front Brake Type:
    Drum
  • Rear Brake Diameter (in):
    4.3
  • Rear Brake Diameter (mm):
    110
  • Rear Brake Type:
    Drum

ENGINE

  • Bore (in):
    2.01
  • Bore (mm):
    51
  • Carburetion Brand:
    Mikuni
  • Carburetion Type:
    Carburetor
  • Carburetor Size (mm):
    16
  • Carburetor:
    Yes
  • Compression Ratio:
    9.3
  • Cooling:
    Air
  • Cylinders:
    1
  • Displacement (cc):
    110
  • Displacement (ci):
    6.7
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Horsepower RPM:
    7500
  • Number Of Carburetors:
    1
  • Starter:
    Electric / Kick
  • Stroke (in):
    2.13
  • Stroke (mm):
    54
  • Torque RPM:
    4000
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    2
  • Valves:
    2

EXTERIOR

  • Body Material:
    Plastic
  • Chain Guard:
    Yes
  • Exhaust Guard:
    Yes
  • Foot Peg Location:
    Driver
  • Frame:
    Steel
  • Stand Type:
    Kick
  • Top Crown Material:
    Aluminum

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    26.4
  • Seat Height (mm):
    670.6
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Suspension Size (in):
    1.2
  • Front Suspension Size (mm):
    31
  • Front Suspension Type:
    Telescopic Fork
  • Front Travel (in):
    4.5
  • Front Travel (mm):
    114.3
  • Number Rear Shock Absorbers:
    1
  • Rear Suspension Brand Name:
    Monocross®
  • Rear Suspension Material:
    Steel
  • Rear Suspension Size (in):
    0.5
  • Rear Suspension Size (mm):
    12
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Rear Travel (in):
    4.3
  • Rear Travel (mm):
    109.2

TECHNICAL SPECIFICATIONS

  • Engine Displacement to Weight (cc):
    0.69
  • Fuel Capacity (gal):
    1
  • Fuel Capacity (l):
    3.8
  • Ground Clearance (in):
    7.1
  • Ground Clearance (mm):
    180.3
  • Height (in):
    36.2
  • Height (mm):
    919.5
  • Length (ft):
    5.13
  • Length (ft/ft):
    5
  • Length (ft/in):
    1.6
  • Length (in):
    61.6
  • Length (mm):
    1564.6
  • Wet Weight (kg):
    72.1
  • Wet Weight (lbs):
    159
  • Wheelbase (in):
    42.5
  • Wheelbase (mm):
    1079.5
  • Width (in):
    26.8
  • Width (mm):
    680.7

TRANSMISSION

  • Number Of Speeds:
    4
  • Primary Drive (Rear Wheel):
    Chain
  • Transmission Type:
    Manual / Automatic Clutch

WHEELS & TIRES

  • Front Tire (Full Spec):
    Cheng Shin® C803
  • Front Wheel Diameter:
    14
  • Front Wheel Width (in):
    2.5
  • Rear Tire (Full Spec):
    Cheng Shin® C803
  • Rear Wheel Diameter:
    12
  • Rear Wheel Width (in):
    3
  • Tire Brand:
    Cheng Shin®
  • Tube / Tubeless:
    Tubed
