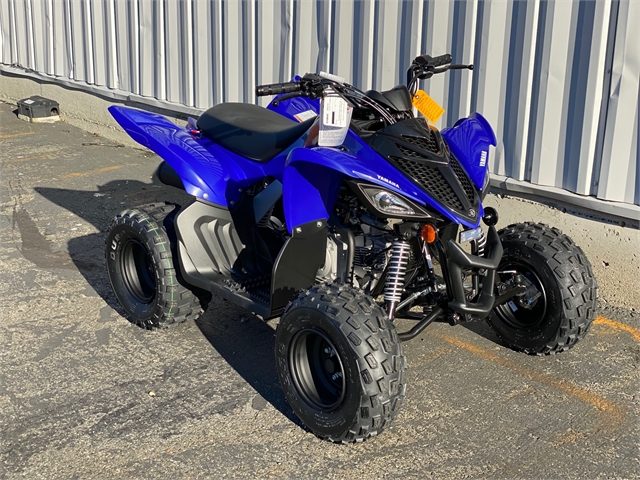

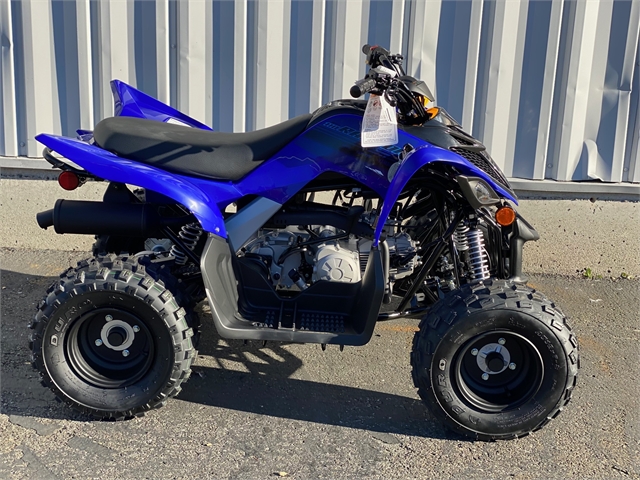

2024 Yamaha Raptor 110

IN STOCK!

Stock #QYA1432
MSRP: $3,599 USD

114 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2024 Yamaha Raptor . I'm in the area and you can reach me at or by phone at .



CALLING NEW RIDERS

With a new 112cc engine, fuel injection, electric start and legendary Raptor styling, this youth ATV is pure fun for riders aged 10 and up.



CHASSIS / SUSPENSION

  • COMFORTABLE ACCOMMODATIONS: The Raptor 110 is designed to be comfortable for a wide variety of riders aged 10-years old and up, with roomy ergonomics, a plush seat, and wide floorboards.
  • OPTIMIZED TIRES: Duro® low-profile tires—AT18 x 7-8 front and AT18 x 9-8 rear—give the Raptor 110 aggressive looks and sporty handling.
  • SECURE STOPPING POWER: For reliable stopping power, the Raptor 110 features three-sealed drum brakes, and a handlebar-mounted parking brake for when the adventure is over.
  • SPORTY CHASSIS: Compact A-arm front suspension is tuned for light, sporty steering and comfortable ride quality. The preload-adjustable front shocks offer 5-inches of wheel travel and add to the Raptor 110’s sporty look. The rear swingarm also features a 5-way preload adjustable shock, offering 5.7-inches of wheel travel.

ENGINE

  • AUTOMATIC TRANSMISSION: Fully automatic, continuously variable transmission (CVT) means no shifting. Handy for all riders aged 10-years old and up, it’s a feature beginning riders particularly appreciate. Standard reverse gear further eases the Raptor 110's maneuvering.
  • ELECTRIC STARTER: Push-button electric starting comes standard. For additional peace of mind, a backup kick starter is also provided in a storage spot under the seat.
  • LOW MAINTENANCE DESIGN: Servicing is easy thanks to features like the tool-less quick-access air filter element.
  • 112CC ENGINE: The new fuel-injected 112cc four-stroke SOHC engine is tuned to develop excellent low- to mid-range performance, just where it’s needed. The engine is air-cooled for simplicity, performance and long life, and uses ultra-reliable wet-sump lubrication.
  • SPORTY DRIVETRAIN: Engine power is transferred to the rear wheels via a tried-and-true O-ring chain drive, running along a swingarm that’s set at an optimized angle for rear shock performance.

FOR 2024

  • FUEL-INJECTED 112CC POWERPLANT: Featuring a larger displacement 112cc engine and advanced fuel injection, the new 2024 Raptor 110 minimizes maintenance and maximizes fun, the perfect platform for allowing young riders to build skill and confidence.
  • INDICATOR LIGHTS: In addition to the Reverse Indicator Light and Neutral Indicator Light, the 2024 Raptor 110 adds a new Engine Trouble Warning Light and a new Fuel Level Warning Light for added confidence on the trail.

OTHER FEATURES

  • MODERN, RELIABLE ELECTRONICS: The new EFI system with an ECU delivers strong, reliable performance. A sealed, maintenance-free battery provides worry-free operation. Convenient handlebar-mounted reverse and neutral indicators, along with new engine warning and low-fuel warning lights keep the rider informed in all situations.
  • YAMAHA RAPTOR 700R DNA: For sporty looks and handling, the Raptor 110 uses low-profile Duro® tires on lightweight wheels and styling that's unmistakably inspired by the mighty Raptor 700R.

TOP FEATURES

  • COMFORTABLE CHASSIS: An advanced frame design incorporates a large 1.8-gallon fuel tank, plush seat and roomy integrated floorboards on an optimized wheelbase.
  • COMPACT, SPORTY & CONFIDENCE-INSPIRING 112CC ENGINE: The Raptor 110 is built to bring maximum fun to ATV riders ages 10 and up. A new fuel-injected 112cc air-cooled SOHC 4-stroke engine is tuned to develop excellent low- to mid-range performance. A fully automatic CVT transmission with reverse, a gated shifter, and electric start with a back-up kickstart all come standard.
  • REDUCED MAINTENANCE DESIGN: Servicing is simple thanks to features like the tool-less quick-access air filter element.
  • SCALED DOWN, NOT SCALED BACK: Compact A-arm front suspension is tuned for light, sporty steering and comfortable ride quality. The preload-adjustable front shocks offer 5 inches of wheel travel and add to the Raptor 110’s full-size ATV look. The rear swingarm also features a 5-way preload adjustable shock, offering 5.7 inches of wheel travel.
  • YAMAHA RAPTOR 700R DNA: For sporty looks and handling, the Raptor 110 uses low-profile Duro® tires on lightweight wheels and styling that's unmistakably inspired by the mighty Raptor 700R.
  • Status:
    New
  • Vehicle:
    2024 Yamaha Raptor 110
  • VIN:
    RF3AE08Y7RT001432
  • Color:
    Team Yamaha Blue
  • Stock Number:
    QYA1432
  • Title:
    Clear
  • Location:
    Lynnwood Motoplex, Lynnwood, WA 98037
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Dual Sealed Drum
  • Rear Brake Type:
    Drum

DRIVE LINE

  • Driveline Type:
    4X2
  • Number Of Driveline Modes:
    1
  • Rear Solid Axle:
    Yes

ENGINE

  • Bore (in):
    2.06
  • Bore (mm):
    52.4
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.2
  • Cooling:
    Air
  • Cylinders:
    1
  • Displacement (cc):
    112
  • Displacement (ci):
    6.8
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    22
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric / Kick
  • Stroke (in):
    2.04
  • Stroke (mm):
    51.8
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    2
  • Valves:
    2

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Floor Board Location:
    Driver
  • Foot Peg Location:
    Driver
  • Frame:
    Steel

INSTRUMENTATION

  • Fuel Level Warning Type:
    Light

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    29.5
  • Seat Height (mm):
    749.3
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Manual

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Suspension Type:
    A-Arm
  • Front Travel (in):
    5
  • Front Travel (mm):
    127
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Type:
    Swing Arm
  • Rear Travel (in):
    5.7
  • Rear Travel (mm):
    144.8

TECHNICAL SPECIFICATIONS

  • Engine Displacement to Weight (cc):
    0.39
  • Fuel Capacity (gal):
    1.8
  • Fuel Capacity (l):
    6.8
  • Height (in):
    39
  • Height (mm):
    990.6
  • Length (ft):
    4.88
  • Length (ft/ft):
    4
  • Length (ft/in):
    10.5
  • Length (in):
    58.5
  • Length (mm):
    1485.9
  • Wet Weight (kg):
    130.4
  • Wet Weight (lbs):
    287.5
  • Wheelbase (in):
    40.6
  • Wheelbase (mm):
    1031.2
  • Width (in):
    40.2
  • Width (mm):
    1021.1

TRANSMISSION

  • Primary Drive (Rear Wheel):
    Chain
  • Reverse:
    Yes
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Duro AT 18 X 7-8
  • Front Tire Diameter (in):
    18
  • Front Tire Width:
    7
  • Front Wheel Diameter:
    8
  • Rear Tire (Full Spec):
    Duro AT 18 X 9-8
  • Rear Tire Diameter (in):
    18
  • Rear Tire Width:
    9
  • Rear Wheel Diameter:
    8
  • Tire Brand:
    Duro
  • Tube / Tubeless:
    Tubeless
  • Wheels Composition:
    Steel
