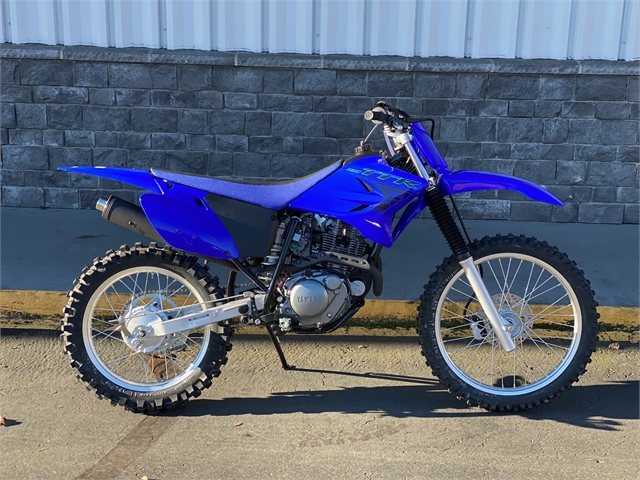

2024 Yamaha TT-R230

NO FREIGHT OR SETUP FEES ($788 VALUE)

Stock #QYD3406
MSRP: $4,699 USD

170 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2024 Yamaha TT-R . I'm in the area and you can reach me at or by phone at .



LEAVE NO TRAIL UNTAMED

Easy to ride and easy to maintain, the super-capable TT-R230 delivers proven performance.



Chassis / Suspension

  • ADVANCED REAR SUSPENSION: A linkage-mounted adjustable rear shock serves up 8.7 inches of smooth, progressive rear wheel travel for great bump absorption and handling.
  • DUAL DISC BRAKING SYSTEM: The 220 mm front disc and 130 mm rear drum brakes provide powerful, confident stops.
  • GENEROUS GROUND CLEARANCE: Generous 11.6 inches of ground clearance is enough to handle almost any trail.
  • LIGHTWEIGHT SWINGARM: Aluminum box-section swingarm features snail-type chain adjusters for quick and easy chain adjustments.
  • MX-STYLE WHEELS AND TIRES: Full size 21-inch front and 18-inch rear aluminum wheels keep unsprung weight down, while knobby tires provide motocross-spec grip.
  • ROBUST, COMPACT FRAME: The steel frame with a compact wheelbase and low seat height result in superb maneuverability and responsive handling for beginner or intermediate riders.
  • TRAIL-READY FRONT FORK: The 36 mm front fork with 9.4 inches of wheel travel provides plush, confidence-inspiring control over rough terrain.

Engine

  • BROAD, ACCESSIBLE POWERBAND: The 223 cc air-cooled SOHC four-stroke puts out smooth, widespread power that is perfectly suited for all kinds of trails and riders. The super-reliable electric start adds quick-start convenience.
  • DIGITAL IGNITION: CDI magneto ignition system is ultra-reliable and nearly maintenance-free.
  • FOREST-FRIENDLY EXHAUST: The lightweight exhaust includes a quiet muffler and USFS-approved spark arrestor.
  • FREE-FLOWING INTAKE: The YZ-type air filter offers easy maintenance and maximum airflow.
  • LOW MAINTENANCE ENGINE: Automatic cam chain tensioner means minimal maintenance and longer engine life.
  • SIX-SPEED TRANSMISSION: Smooth-shifting, six-speed transmission with heavy-duty clutch is geared for maximum versatility and usable power delivery.

Other Features

  • COMFORTABLE SADDLE: Long gripper seat is low, comfortable and allows for easy rider movement.
  • FORK PROTECTION: Durable fork boots provide excellent fork seal and stanchion tube protection.
  • GRIPPY FOOT PEGS: Large folding, cleated foot pegs provide excellent footing, even in wet or muddy conditions.
  • RACING STYLING: Team Yamaha-inspired colors and graphics and front and side number plates create distinctive, motocross styling.

Top Features

  • BROAD, ACCESSIBLE POWERBAND: YZ-inspired looks with a stout 223cc air-cooled SOHC four-stroke produces predictable, broad power making the TT-R230 a great choice for both beginner and intermediate riders.
  • CONVENIENT ELECTRIC START: With a simple push of a button, the electric start makes getting started a breeze.
  • RACING-DERIVED ERGONOMICS: The competition-style flat seat and tank junction position the rider for greater mobility.
  • ROBUST, COMPACT FRAME: The steel, diamond-type frame design means great handling and strength.
  • TRAIL-READY DIMENSIONS: The low seat height on top of a long-travel suspension and 11.6 inches of ground clearance make this a serious trail bike that's accessible for a wide range of riders.
  • Status:
    New
  • Vehicle:
    2024 Yamaha TT-R230
  • VIN:
    9C6CG28E5R0003406
  • Model Number:
    TTR230PC
  • Color:
    Team Yamaha Blue
  • Stock Number:
    QYD3406
  • Title:
    Clear
  • Location:
    Lynnwood Motoplex, Lynnwood, WA 98037
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    8.7
  • Front Brake Diameter (mm):
    220
  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    5.1
  • Rear Brake Diameter (mm):
    130
  • Rear Brake Type:
    Drum

ENGINE

  • Bore (in):
    2.76
  • Bore (mm):
    70
  • Carburetion Type:
    Carburetor
  • Carburetor:
    Yes
  • Compression Ratio:
    9.5
  • Cooling:
    Air
  • Cylinders:
    1
  • Displacement (cc):
    223
  • Displacement (ci):
    13.6
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Number Of Carburetors:
    1
  • Starter:
    Electric
  • Stroke (in):
    2.29
  • Stroke (mm):
    58
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    2
  • Valves:
    2

EXTERIOR

  • Body Material:
    Plastic
  • Chain Guard:
    Yes
  • Chassis Protectors:
    Yes
  • Foot Peg Location:
    Driver
  • Fork Guards:
    Yes
  • Frame:
    Steel
  • Heel Guards:
    Yes
  • Stand Type:
    Kick

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    34.3
  • Seat Height (mm):
    871.2
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Suspension Size (in):
    1.4
  • Front Suspension Size (mm):
    36
  • Front Suspension Type:
    Telescopic Fork
  • Front Travel (in):
    9.4
  • Front Travel (mm):
    238.8
  • Number Rear Shock Absorbers:
    1
  • Rear Suspension Material:
    Aluminum
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Rear Travel (in):
    8.7
  • Rear Travel (mm):
    221

TECHNICAL SPECIFICATIONS

  • Engine Displacement to Weight (cc):
    0.87
  • Fuel Capacity (gal):
    2.1
  • Fuel Capacity (l):
    7.9
  • Ground Clearance (in):
    11.6
  • Ground Clearance (mm):
    294.6
  • Height (in):
    46.5
  • Height (mm):
    1181.1
  • Length (ft):
    6.78
  • Length (ft/ft):
    6
  • Length (ft/in):
    9.3
  • Length (in):
    81.3
  • Length (mm):
    2065
  • Wet Weight (kg):
    113.9
  • Wet Weight (lbs):
    251
  • Wheelbase (in):
    54.5
  • Wheelbase (mm):
    1384.3
  • Width (in):
    31.5
  • Width (mm):
    800.1

TRANSMISSION

  • Number Of Speeds:
    6
  • Primary Drive (Rear Wheel):
    Chain
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    80/100-21
  • Front Tire Aspect Ratio:
    100
  • Front Tire Speed Rating:
    R
  • Front Tire Width:
    80
  • Front Wheel Diameter:
    21
  • Rear Tire (Full Spec):
    100/100-18
  • Rear Tire Aspect Ratio:
    100
  • Rear Tire Speed Rating:
    R
  • Rear Tire Width:
    100
  • Rear Wheel Diameter:
    18
  • Tube / Tubeless:
    Tubed
  • Wheels Composition:
    Aluminum
